Feature
• Three Operating Modes, Covering All Scenarios
Independent Mode: Dual-channel asynchronous execution with differentiated settings for flow rate, volume, and interval time Synchronous Mode: Different specifications of syringes start and stop simultaneously, ensuring precise coordination and maintaining experimental consistency.
Programming Mode: Supports multi-segment programming and nested loops, accommodating more complex experimental designs.
• Log Function for Traceability
Real-time logging of time, parameters, and operations supports data visualization, saving, and exporting.
• Quick Installation, Saving Time and Effort
Syringe fixing can be completed with one hand, eliminating the traditional dual-nut operation for faster, steadier, and more convenient installation.
• Strong Compatibility
Compatible with a variety of syringes from 0.5 μL to 100 mL, with a single-channel thrust of up to 35 kgf to meet various experimental needs.
• User-Friendly Interaction Experience
New UI interface for easy operation and quick learning.
Optional protective cover to adapt to more experimental environments.
• Forward-Looking Functionality Reservations
Reserved wireless control port for remote operation.
Reserved constant temperature functionality to support temperature-sensitive experiments, such as microfluidics (cell culture).
Technical Parameter
Work Mode: Independent mode-Infuse,withdraw,infuse /withdraw, withdraw/infuse continuous mode; Synchronous mode-Infuse,withdraw; Program mode: Infuse,withdraw
Channels: 2
Maximum Stroke: 110mm
Syringe Size: 0.5μL-100mL
Flow Range: 8pL/min-150.147mL/min
Travel Resolution: 0.156um/ustep
Linear Velocity: 1um/min –150mm/min
Linear Travel Accuracy: ±0.35% (when >30%of drive stroke)
Reset Precision: ±0.05%
Linear Thrust: 35kgf, adjustable
Method of Operation: Touch Screen Key
Display Method: 7 inches LCD display
Power Off Memory: Keep parameters before power-down
External Control: External signal controls start and stop (two channels for direction control, two channels for start-stop control), wide range input from 5-24V; state signal output (two channels indicate start state, two channels indicate direction signal)
Communicate Interface: RS485, MODBUS protocol
Power Supply Voltage: AC 100-240V 50/60Hz
Wattage: <65W
Working Environment: Ambient temperature 5~40°C Relative humidity <80%
Degree of Protection: IP31
Dimensions: 279×300×251mm
Driver Weight: 7.55kg
Applicable Syringes: Single 0.5uL-100mL syringe
Reference Table of Syringe Specifications and Flow Rate
| Syringe | Syringe ID | Mix Flow | Max Flow |
| 0.5uL | 0.103mm | 8pL/min | 1.249uL/min |
| 1uL | 0.146mm | 16pL/min | 2.511uL/min |
| 2uL | 0.206mm | 33pL/min | 4.999uL/min |
| 5uL | 0.343mm | 83pL/min | 12.497uL/min |
| 10uL | 0.485mm | 184pL/min | 27.711uL/min |
| 25uL | 0.729mm | 417pL/min | 62.608uL/min |
| 50uL | 1.03mm | 833pL/min | 124.984uL/min |
| 100uL | 1.457mm | 1.667nL/min | 250.092uL/min |
| 250uL | 2.304mm | 4.169nL/min | 625.383uL/min |
| 500uL | 3.256mm | 8.326nL/min | 1.248mL/min |
| 1000uL | 4.608mm | 16.676nL/min | 2.501mL/min |
| 1mL | 4.699mm | 17.342nL/min | 2.601mL/min |
| 3mL | 8.585mm | 57.885nL/min | 8.682mL/min |
| 5mL | 11.989mm | 112.89nL/min | 16.933mL/min |
| 10mL | 14.427mm | 163.471nL/min | 24.520mL/min |
| 20mL | 19.05mm | 285.023nL/min | 42.753mL/min |
| 30mL | 21.59mm | 366.09nL/min | 54.914mL/min |
| 50mL | 28.99mm | 660.428nL/min | 99.06mL/min |
| 60mL | 28.99mm | 660.428nL/min | 99.06mL/min |
| 100mL | 35.7mm | 1000.982nL/min | 150.147mL/min |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually using it is effected by specific factors such as pressure, medium etc. Above for reference only

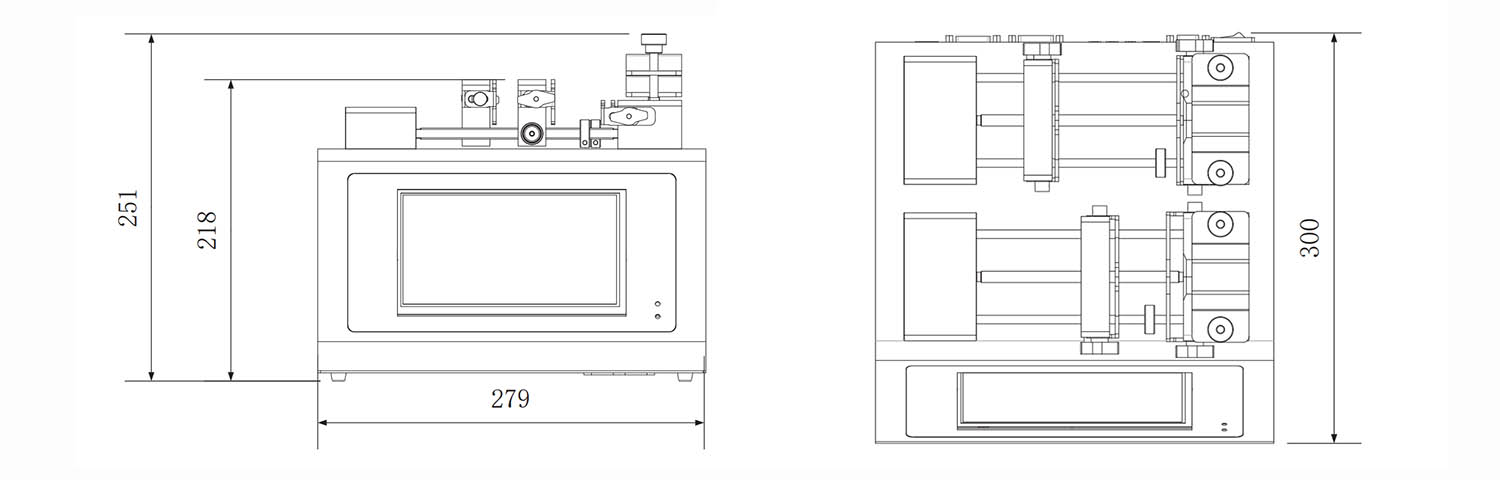

Dimension(mm)
Application Fields:
Laboratories, Industry, Testing Instruments, and more.
Typical Applications:
Microfluidic Chips, Microsphere Preparation, Organoid Culture and More.
