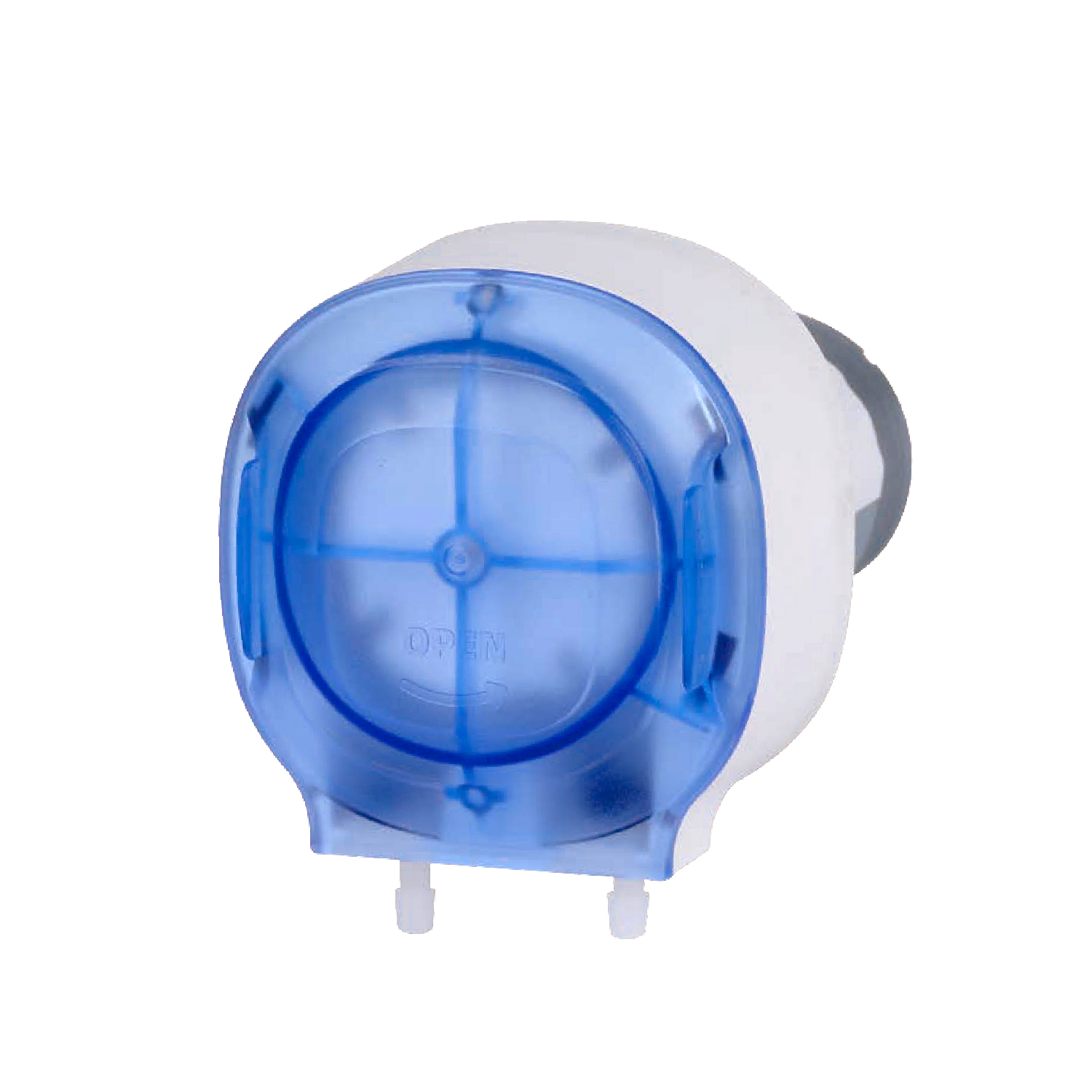

W300A2-KX1502 ODM Peristaltic Pump

Carefully crafted as Lead Fluid’s first twist cap peristaltic pump, designed specifically for ODM applications. Its compact size and flow output of up to 607.7mL/min showcase significant advantages among similar products, widely applied in biochemistry testing, disinfectant

Introduction

• Innovative Technology with Automatic Tube Return
Effectively prevents abnormal wear on hoses, extends service life, and reduces maintenance frequency.

• Low Pulsation Delivery Technology
Utilizes patented micro-pulsation technology (Patent No. 201420691450.5) to achieve precise and stable low-pulsation delivery, ensuring high reliability for critical applications.

• Compact Size with High Flow Rates
Compact design with a maximum flow of 607.7 mL/min, increasing flow rates by 50% compared to similar-sized products, meeting diverse needs.

• Convenient Twist Cap Design
Ergonomically designed twist cap for easy opening and simplified operation.

• Personalized Color Options
The KX1502 features a standard sky blue color with support for multicolor customization to meet your personalized needs.

• Visible Operation
Transparent housing allows for clear visibility of the internal operating status, facilitating real-time monitoring and maintenance.

• Flexible Compatibility
Multiple installation options enhance flexibility in various application scenarios.

• Cost-effective
Balances high performance with economical pricing, providing competitive fluid transfer solutions.

Pump Parameters

Channels: 1
Rollers: 2
Speed Range: ≤300r/min
Flow Range: ≤607.7mL/min
Tube Fixation Method: Tube Joint Fixation
Tube Compression Gap: Fixed Gap
Shell Material: PA6 White
Roller Material: PVDF Material
Motor: 28 brushless DC motor
Power Voltage: DC 24V

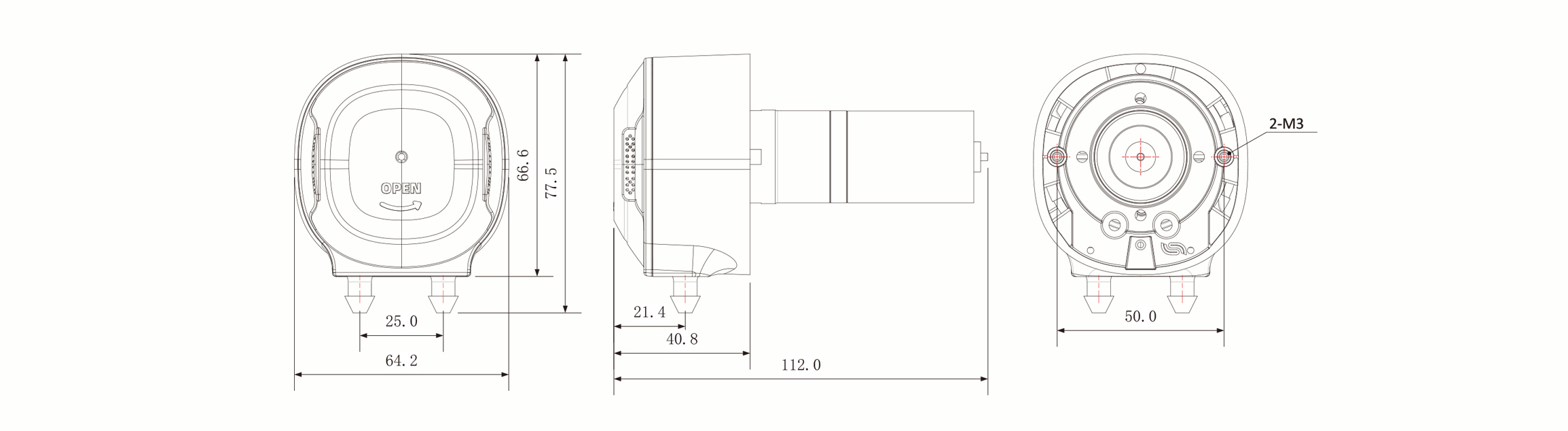

Dimensions (L×W×H): 112×64×77.5mm
Working Environment: Temperature: 0-40℃, Humidity: <80% RH
Weight: 273.53g

Applicable Tube Model and Flow Reference Table

Product Model	Tubing Material	Speed(rpm)	14#	19#	16#	25#	17#
W300A2-KX1502	Silicone	300	49.5	95.3	173.3	375.3	607.7
W300A2-KX1502	Pharmed	300	–	97.7	177.5	365.7	–

The above flow data were all tested using a Lead Fluid silicone tube to pump pure water under laboratory conditions with normal temperature and pressure. This data is for reference only.Due to pressure in actual use , temperature, medium characteristics, tube material and other specific factors,the specific situation needs to consult our engineers.
