MS006 Speed-Variable Intelligent Peristaltic Pump

Lead Fluid MS006 Speed-Variable Intelligent Peristaltic Pump is specifically designed and developed for pharmaceutical and industrial applications. It features a simple and intuitive user interface for ease of operation and control. Compatible with multiple pump heads and tubing materials in various specifications, it delivers a flow rate of up to 7700 mL/min, meeting the demands of most fluid transfer requirements.

Flow: 0.005-7700mL/min
Max: 4 Channels

Feature

• Precision-crafted cast aluminum shell
Streamlined appearance, lightweight cast aluminum powder-coated shell, excellent heat dissipation, strong corrosion resistance.

• 3-inch display screen, clear at a glance
3-inch display screen, clear display, easy operation.

• Servo motor drive
High-precision operation, high torque, low noise.

• Can accomplish multiple transmissions and simple dispensing
By setting running time, interval time, and running times, timed transmission and dispensing distribution functions can be achieved.

• Intelligent interconnection, collaborative operation
Supports RS485 communication, compatible with Modbus protocol.

• Three-level user permission management, security protection, no need to worry about parameter tampering.

• Selects top-brand raw materials, meticulously selected, quality guaranteed.

Technical Parameter

Flow range: 0.005~7700mL/min
Speed range: 0.1~350rpm
Speed resolution: 0.1 rpm
Speed accuracy: ＜±0.2%
Timer range: 0.1～999.9 S/Min/H/D
External control signal input: External analog signal adjusts speed, analog signal 0-5V/0-10V/4-20mA, software setting switching, no need to change external wiring.
External control signal output: External control signal controls start/stop, forward/reverse rotation, external control signal 5-24V input, optoelectronic isolation.
Communication interface: RS485 communication interface, Modbus protocol is available
Power supply: AC 100-240V 50Hz/60Hz
Power consumption: <180W
Working environment: Environment temperature 0-40℃ humidity<80%
Shell material: Aluminum
IP grade: IP31

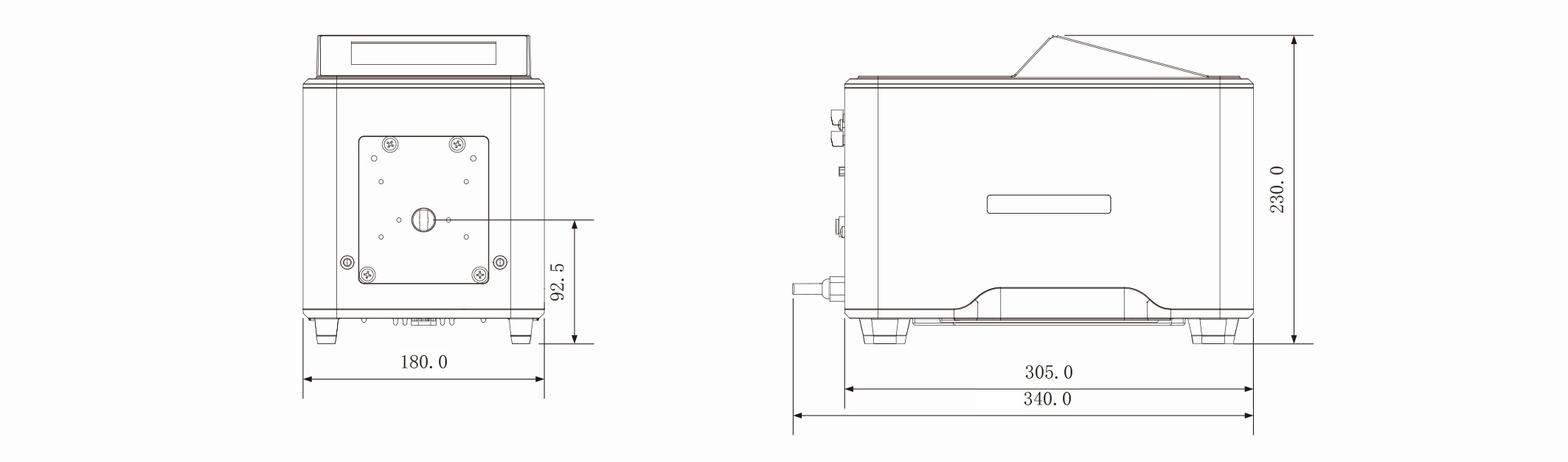

Dimension(L×W×H): 340×180×230mm
Drive weight: 10kg

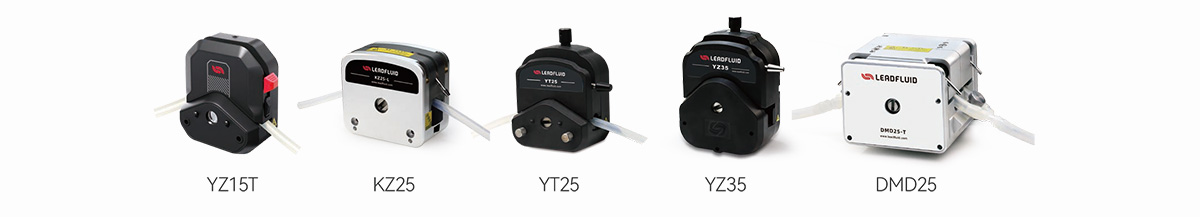

MS006 Applicable Pump Head and Tube,Speed, Flow

Drive Type	Pump Head	Channel	Tube	Single Channel Flow Rate (mL/min)

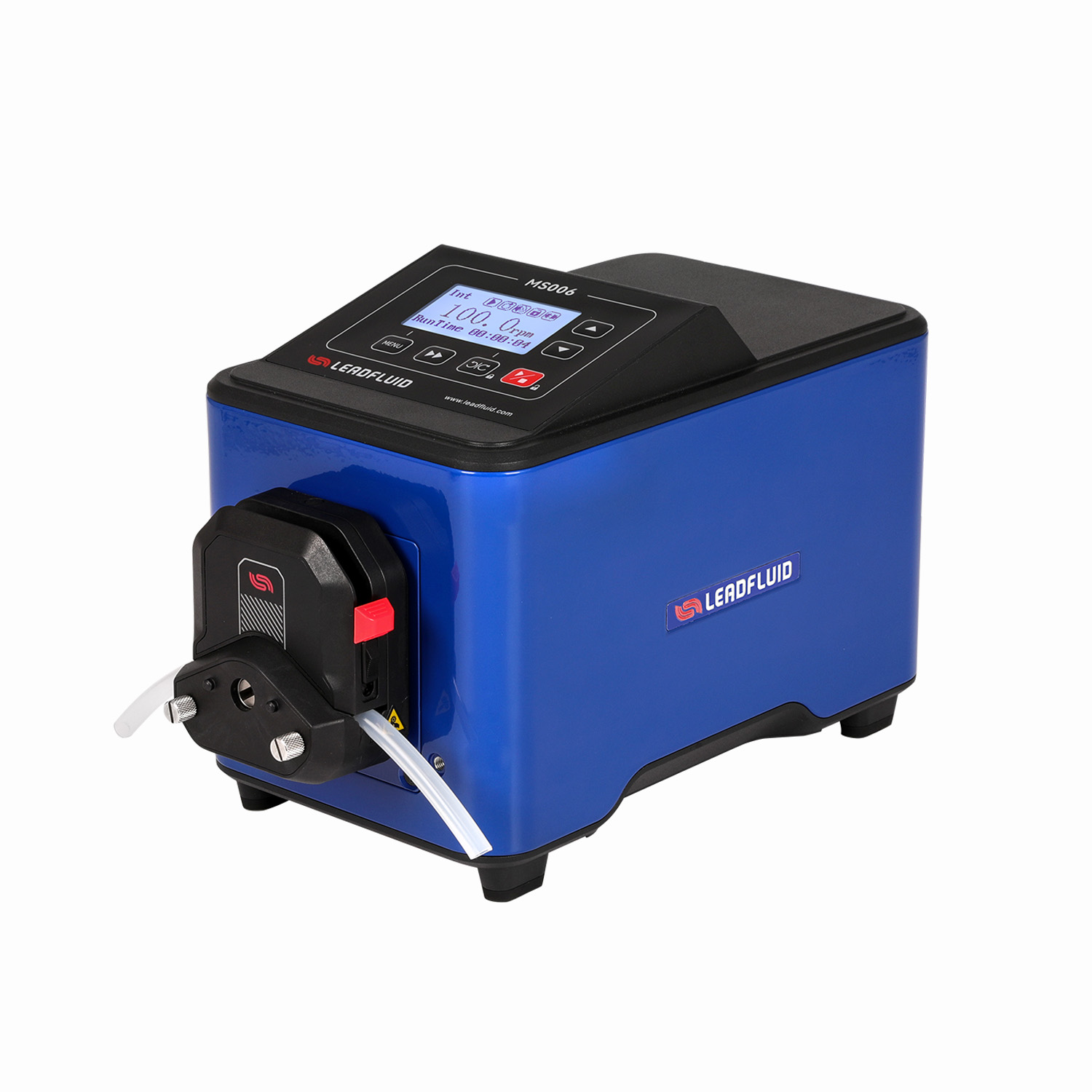

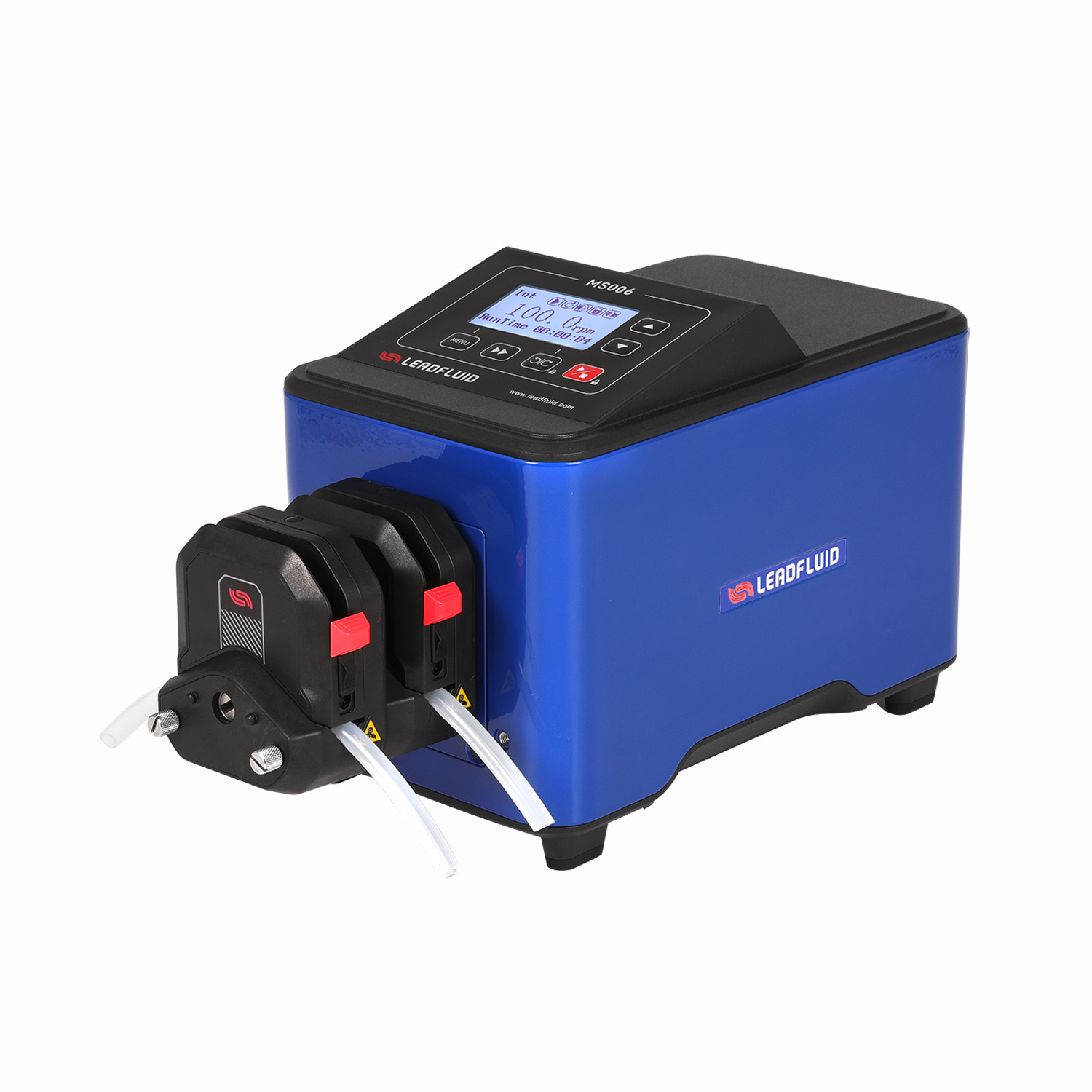

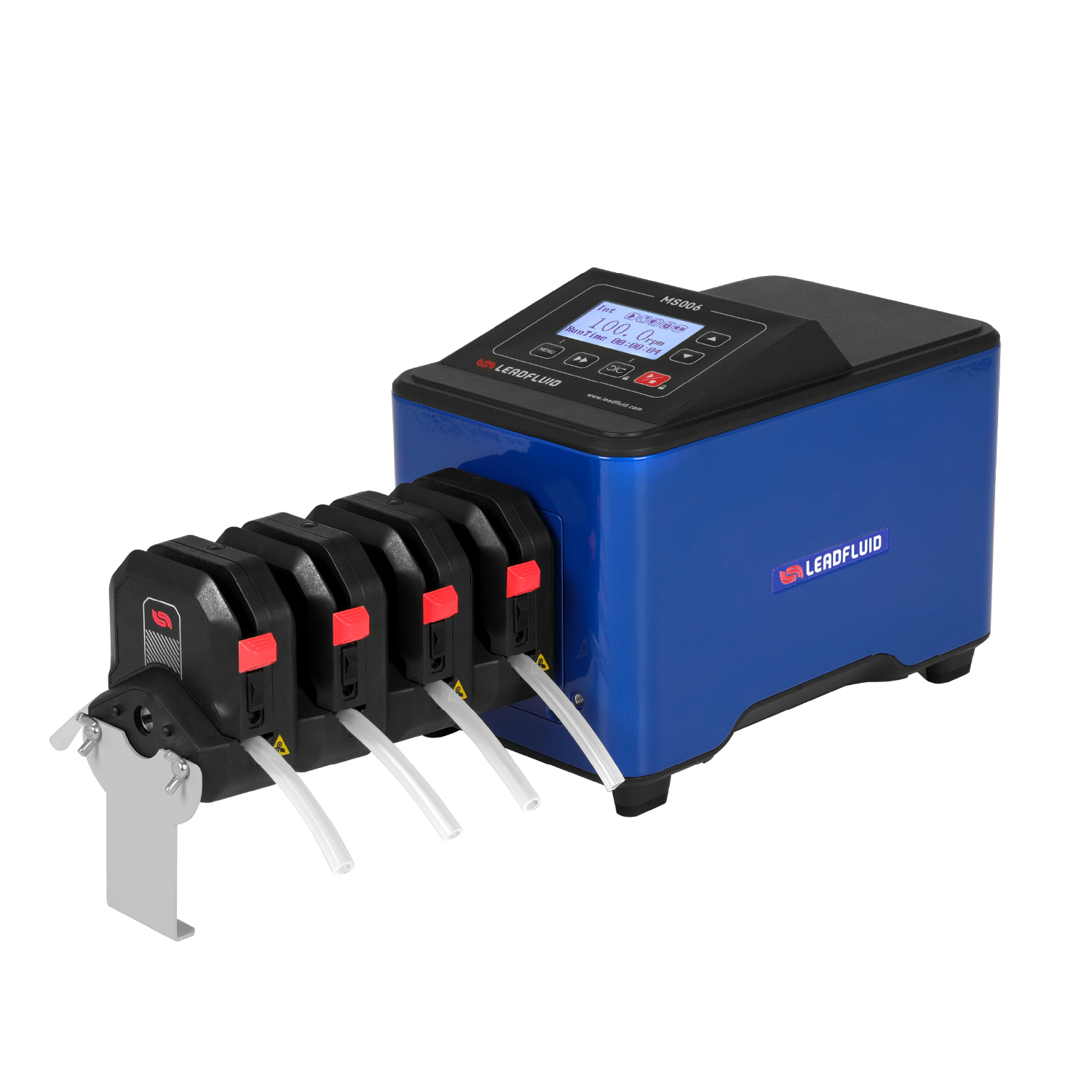

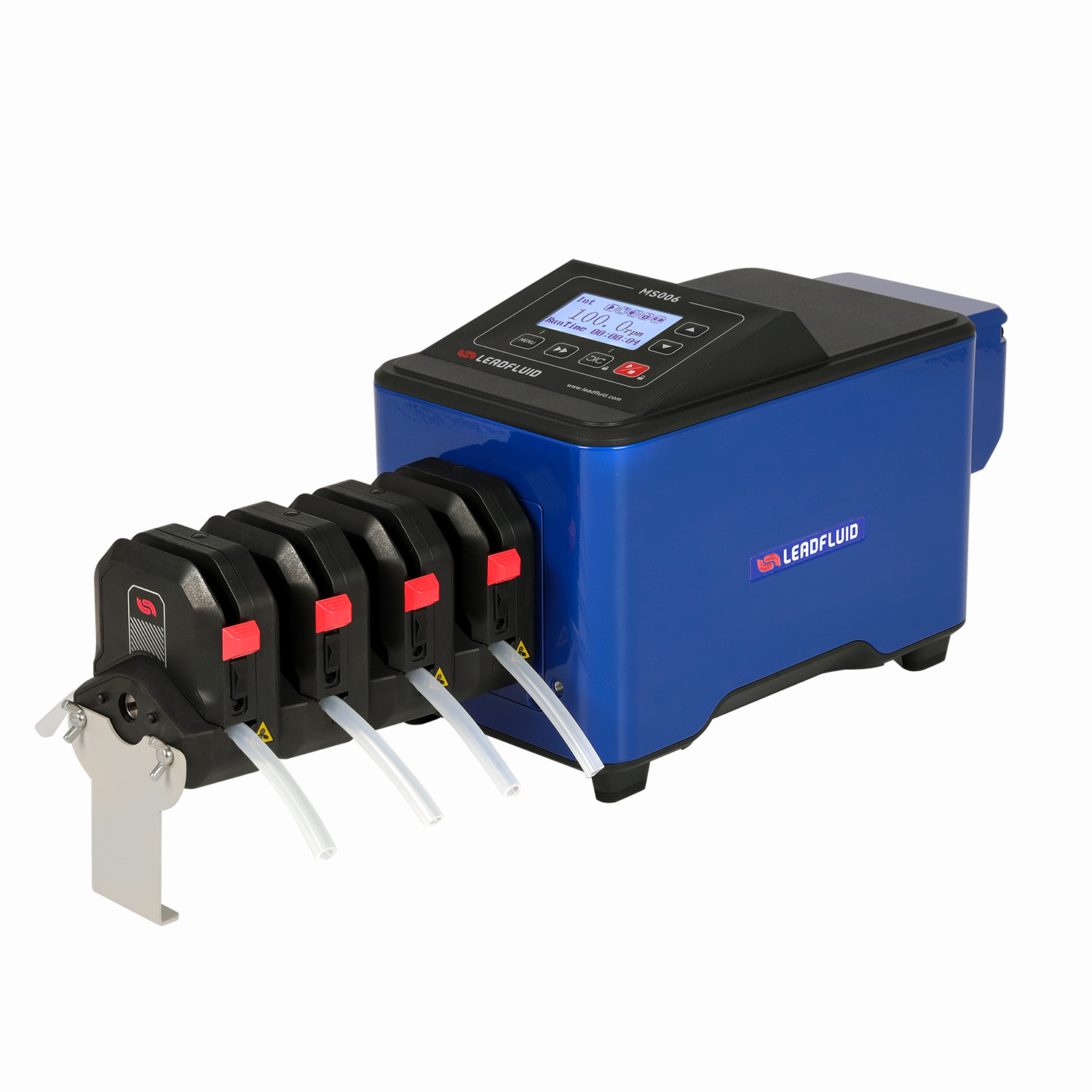

MS006	YZ15/YZ15T	1,2,4	13#14#19#16#25#17#18#	0.005-1575

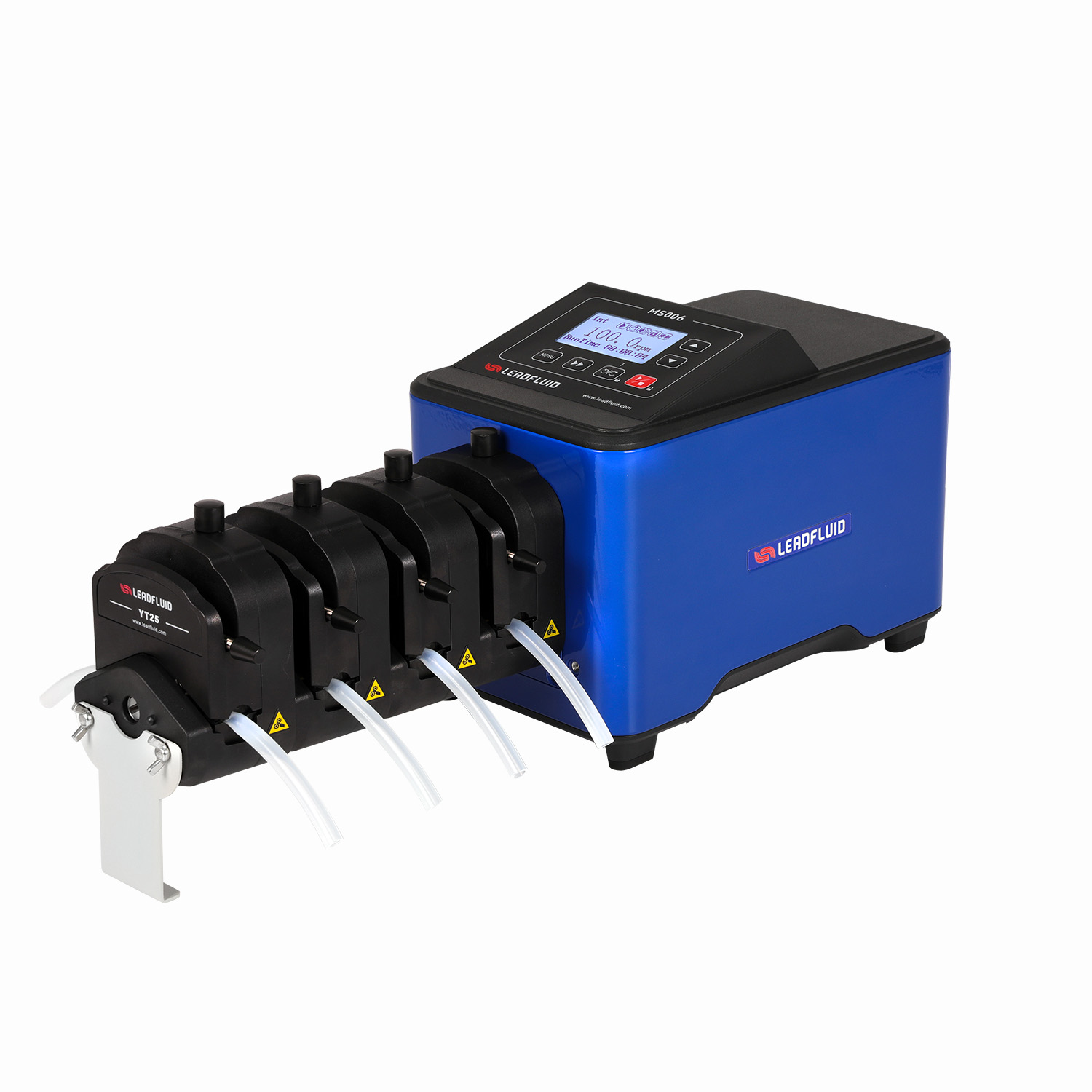

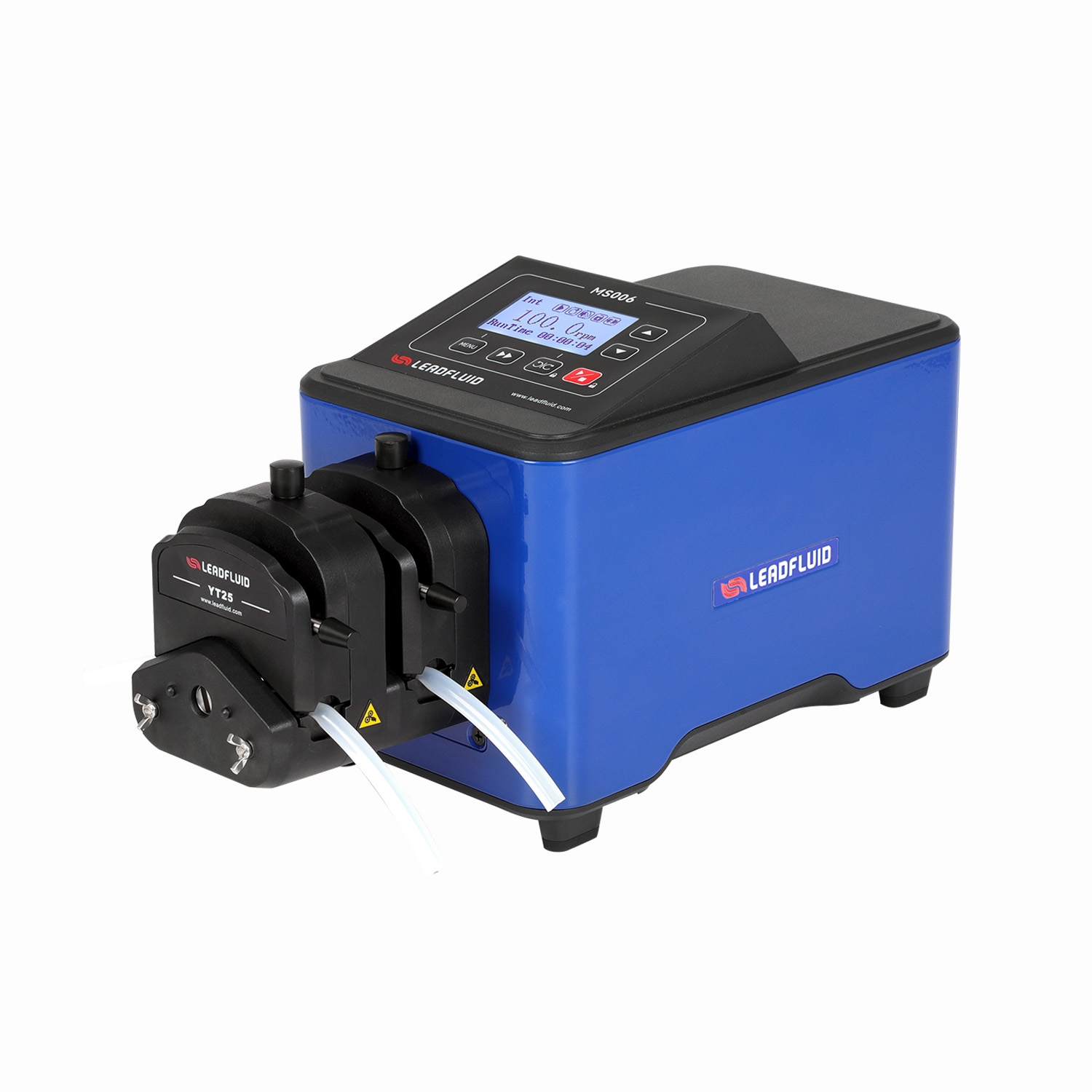

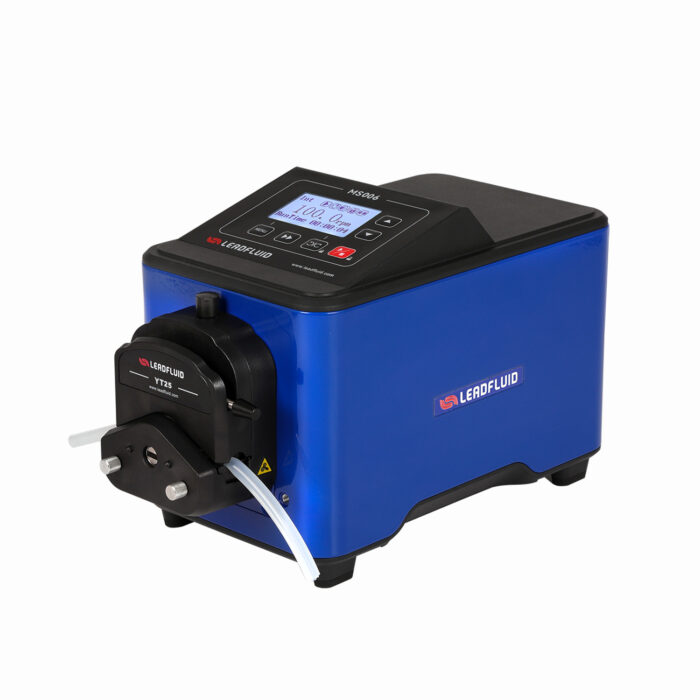

	YT25	1,2	15#25#35#36#	0.18-1750

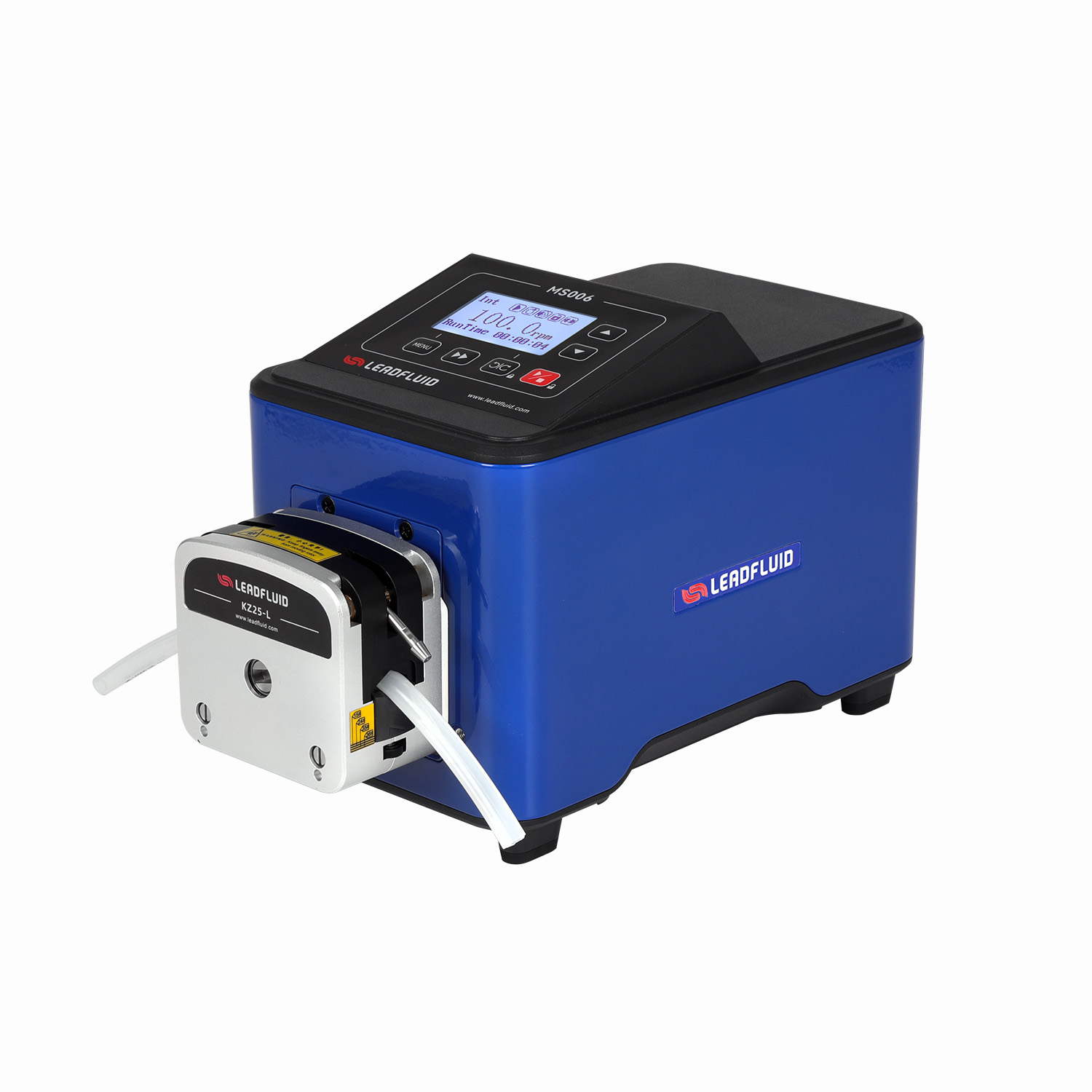

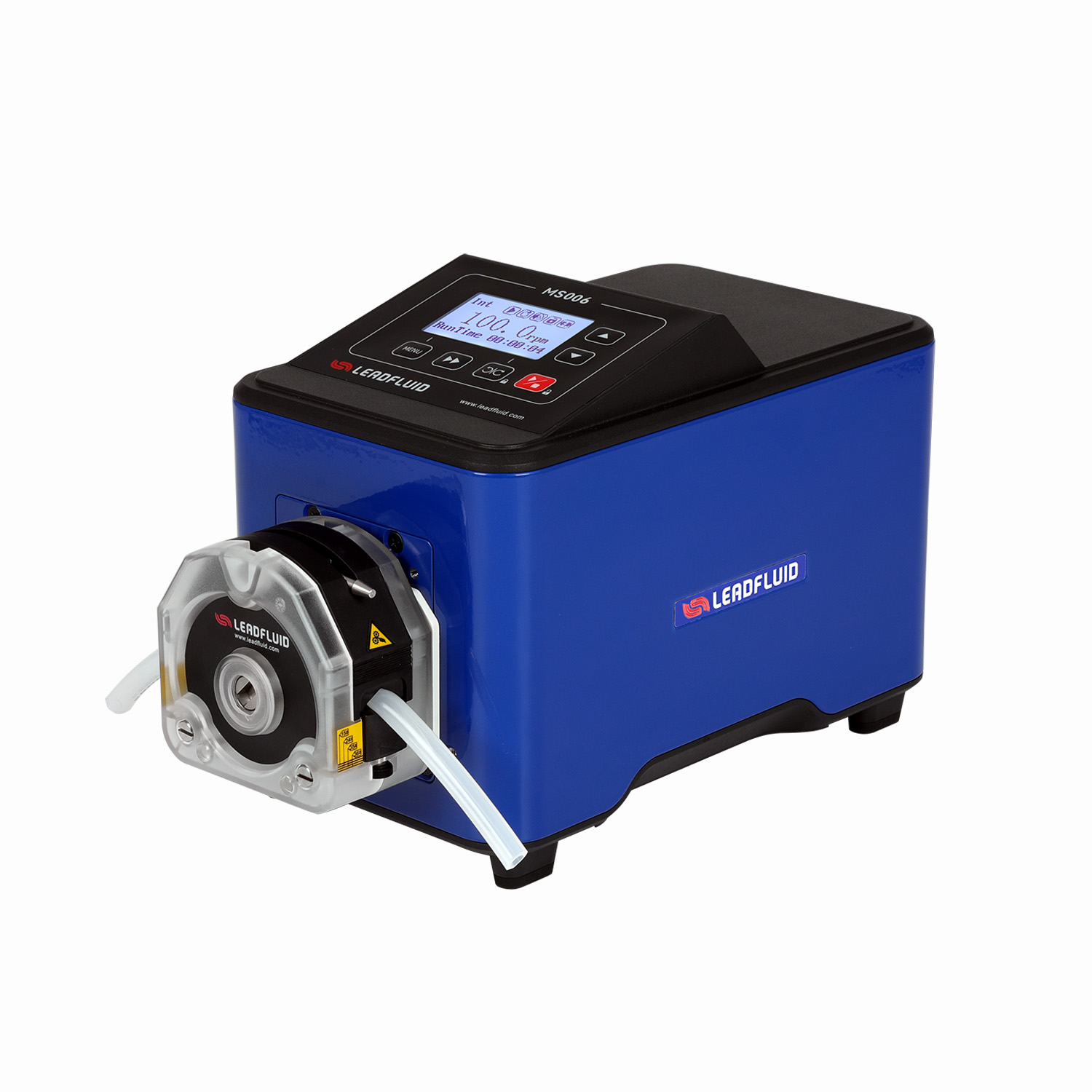

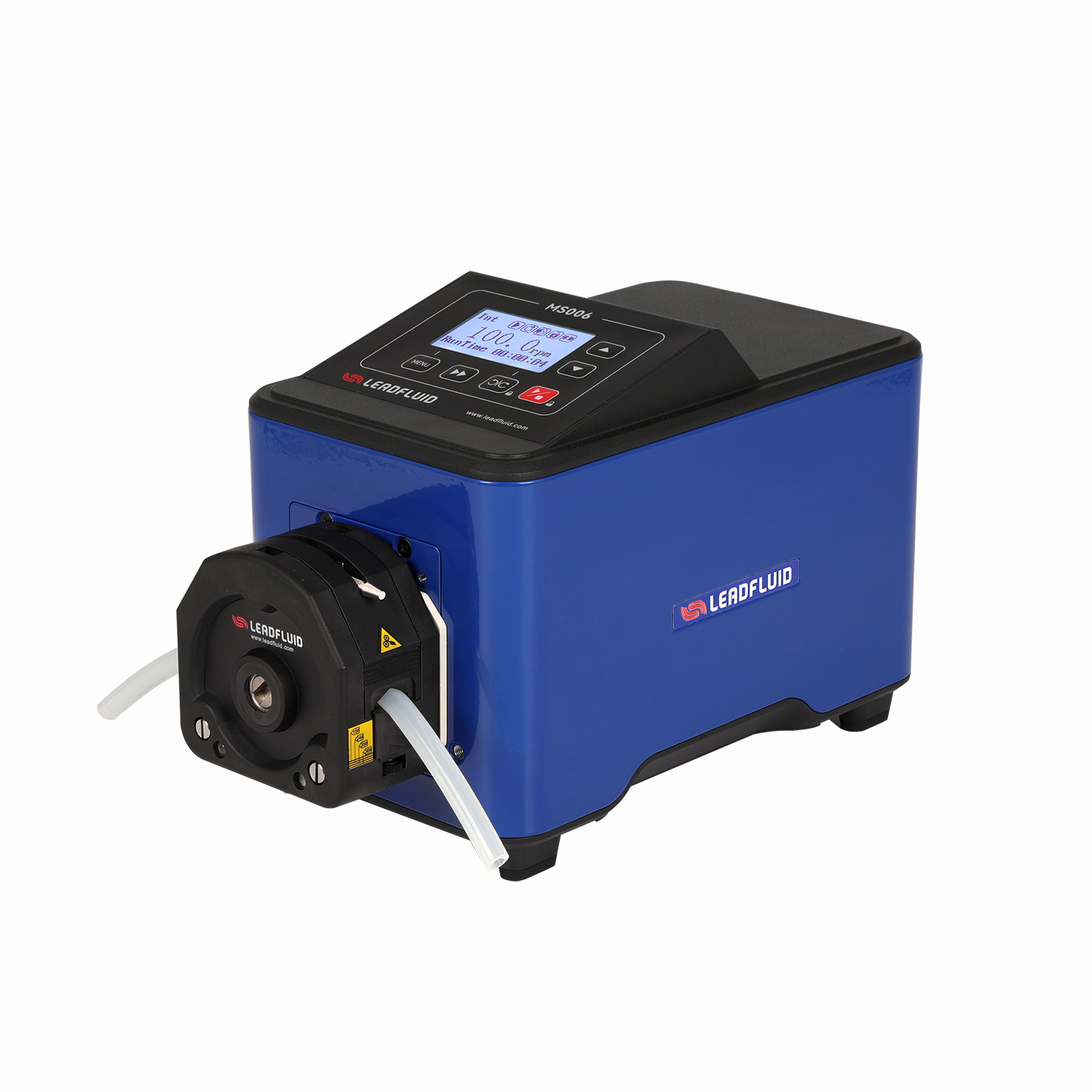

	KZ25	1	15#25#35#36#	0.31-3850

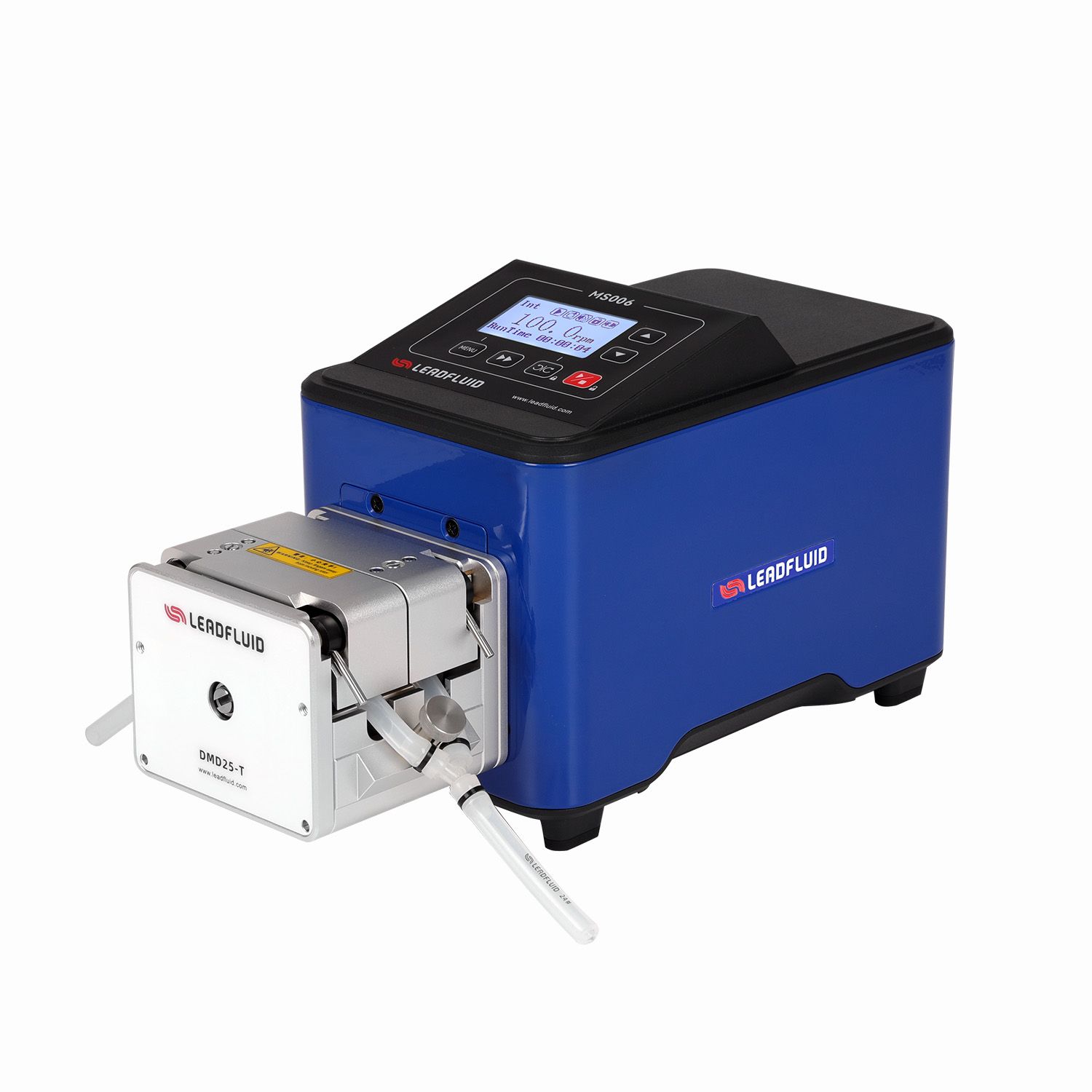

	DMD25	1	15#25#35#36#	0.4-4200

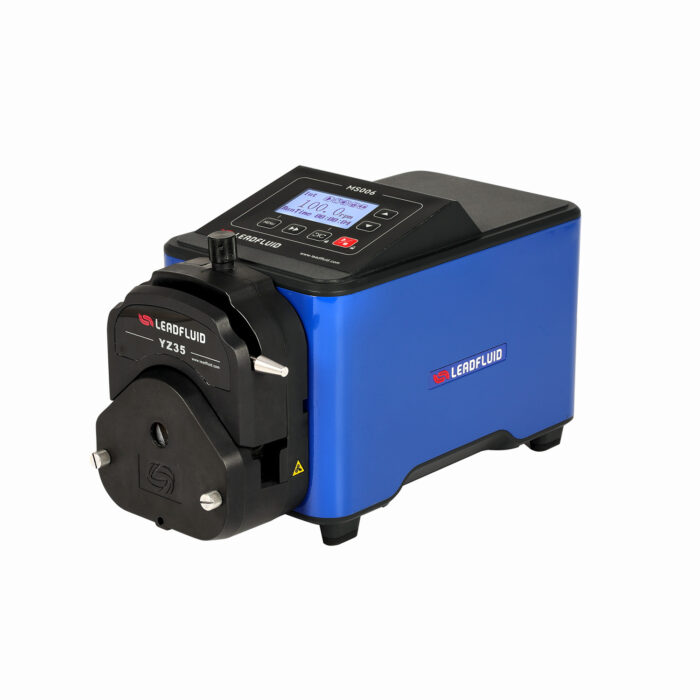

	YZ35	1	73#82#	1.33-770

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually using it is effected by specific factors such as pressure, medium etc. Above for reference only.
